Polyurethane Flip-Flow Vibrating Screens

Polyurethane flip-flow vibrating screen is mainly used for screening of difficult to screen material, such as sticky, very thin , wet(high moisture raw coal, fine-medium grading of coke)which has high screening efficiency, long service time, wide range of particle size, no-clogging, no-bonding The screen of high strength, excellent flexible, good wear resistance, and designed service time more than 4000 hours

Description

Polyurethane Flip-Flow screen

Polyurethane flip-flow vibrating screen is mainly used for screening of difficult to screen material, such as sticky, very thin , wet(high moisture raw coal, fine-medium grading of coke)which has high screening efficiency, long service time, wide range of particle size, no-clogging, no-bonding . The screen of high strength, excellent flexible, good wear resistance, and designed service time more than 4000 hours.

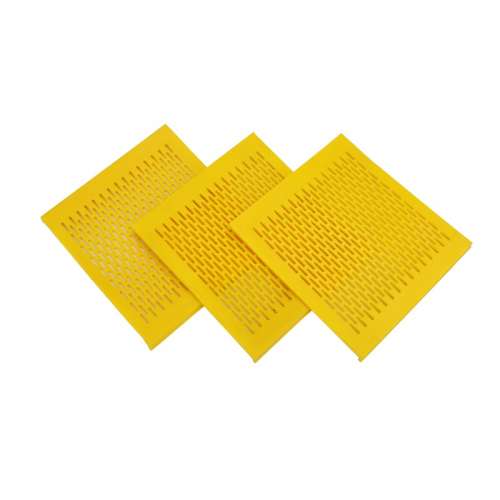

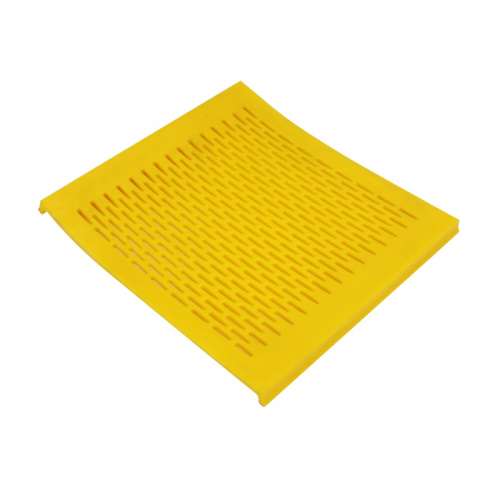

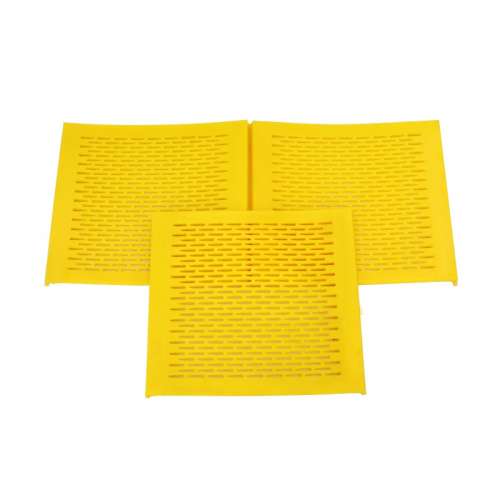

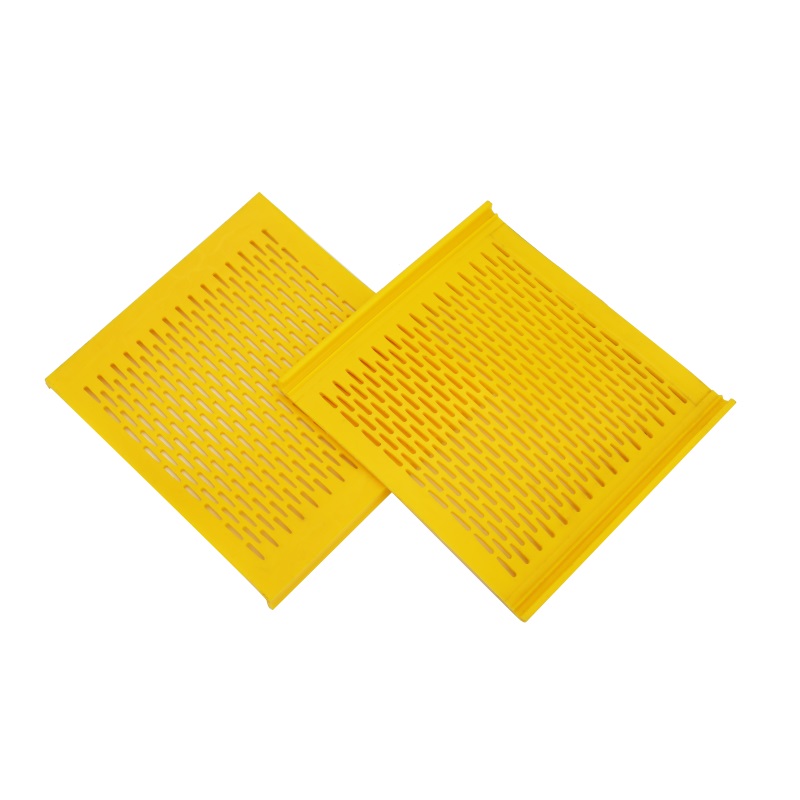

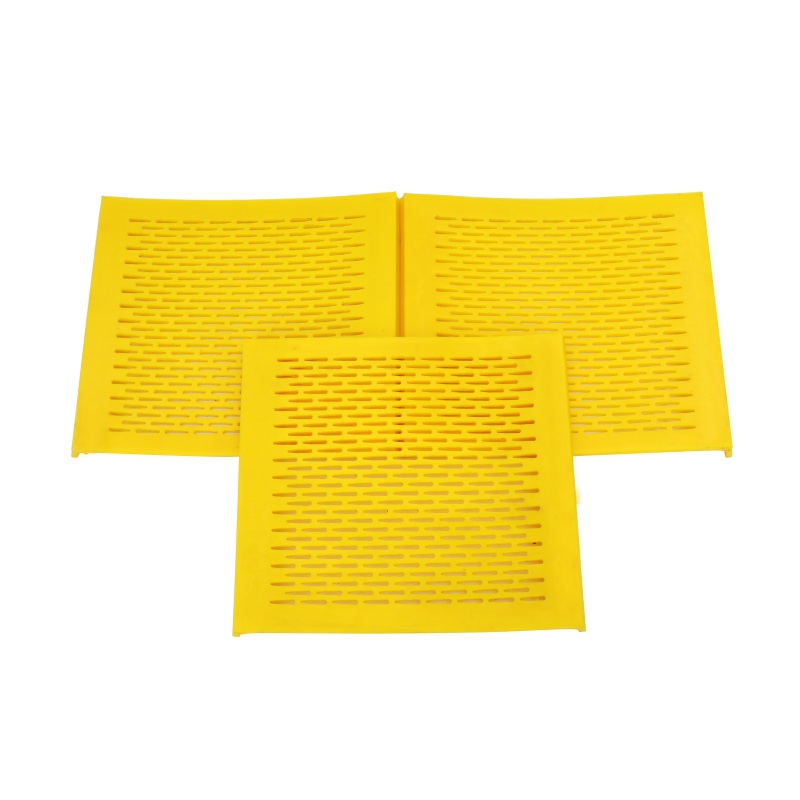

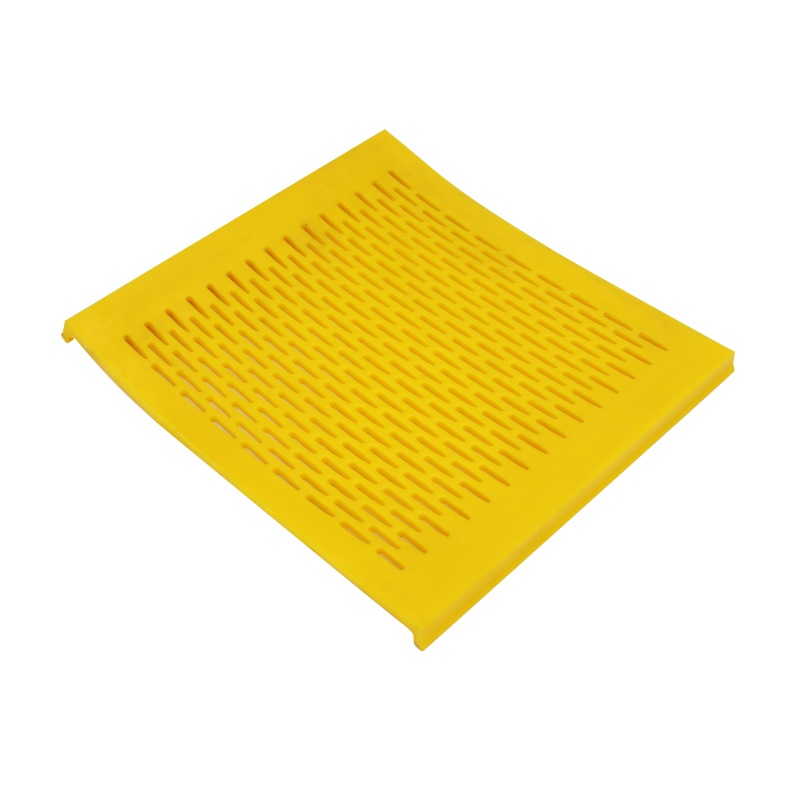

The polyurethane screen panels are a kind of screening media that made of polyurethane raw material. Which is also called polyurethane sieve plates.

Sieve hole type: bar seam, square, round, rectangular.

Application industries: coal washing plant, coking plants, mines, power plants, dredging companies, metallurgy, petroleum, petrochemical and other enterprises.

Specification of Polyurethane Screen
Product Name	Material	Thickness	Hole size
Steel Core Polyurethane Screen	steel wire inside and polyurethane outside	2.5-5mm	2-25mm
Tensioned Polyurethane Screen	polyurethane and steel frame	25-60mm	5-50mm
Modular Polyurethane Screen Mesh	polyurethane and embedded steel frame	30-60mm	2.5-130mm
Polyurethane Dewatering Screen	steel frame and polyurethane surface	30, 45, 50mm	0.1-2.5mm(W), 4-16mm(L)

Additional information

Characteristic

Flip Flow or Flip Flop Screens are generally made in 70Shore polyurethane in 3-5mm thickness. This kind of screens can prevent blinding and plugging effectively. The screen mats will be quickly stretched and slackened . This action will prevents build-up of impurities material in corners or pegging in the screen mat apertures. Flip Flow screens are used in dry screening coal, ores, crushed stone, sand, compost, wood chips, recycled glass and carpet fibres, slag and recycled electronic parts.
