Polyurethane Tree-Shaped Vibrating Rod

Description

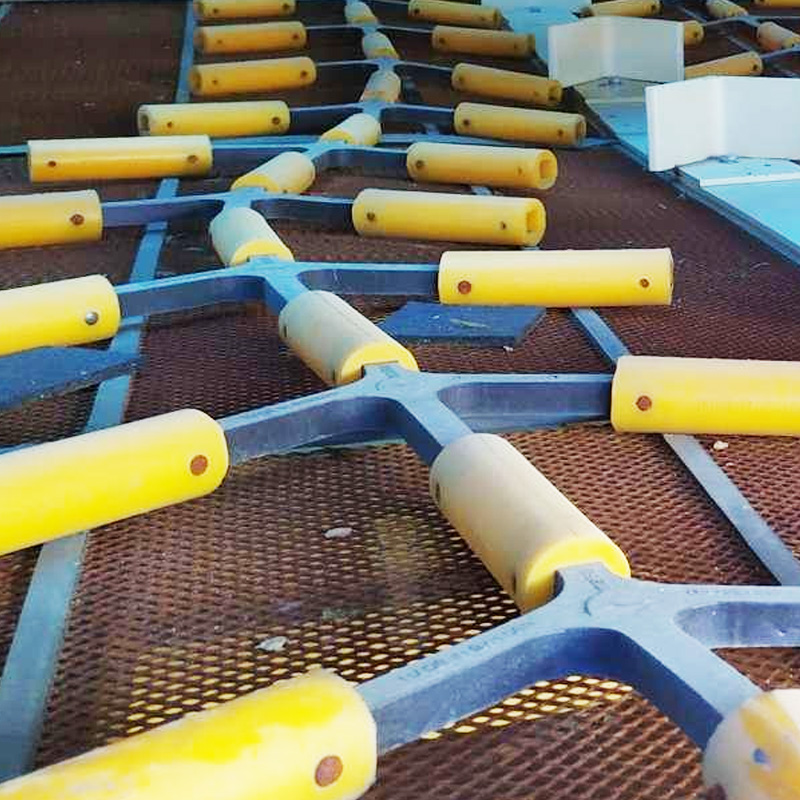

The anti-blocking kit vibrates with the screen machine and reduces the blockage problem by knocking the screen surface. It can avoid wedge-shaped blockage of materials and improve the screening pass rate. The material of the anti-blocking kit ensures that it will not damage the screen when knocking the screen surface.

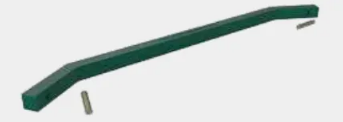

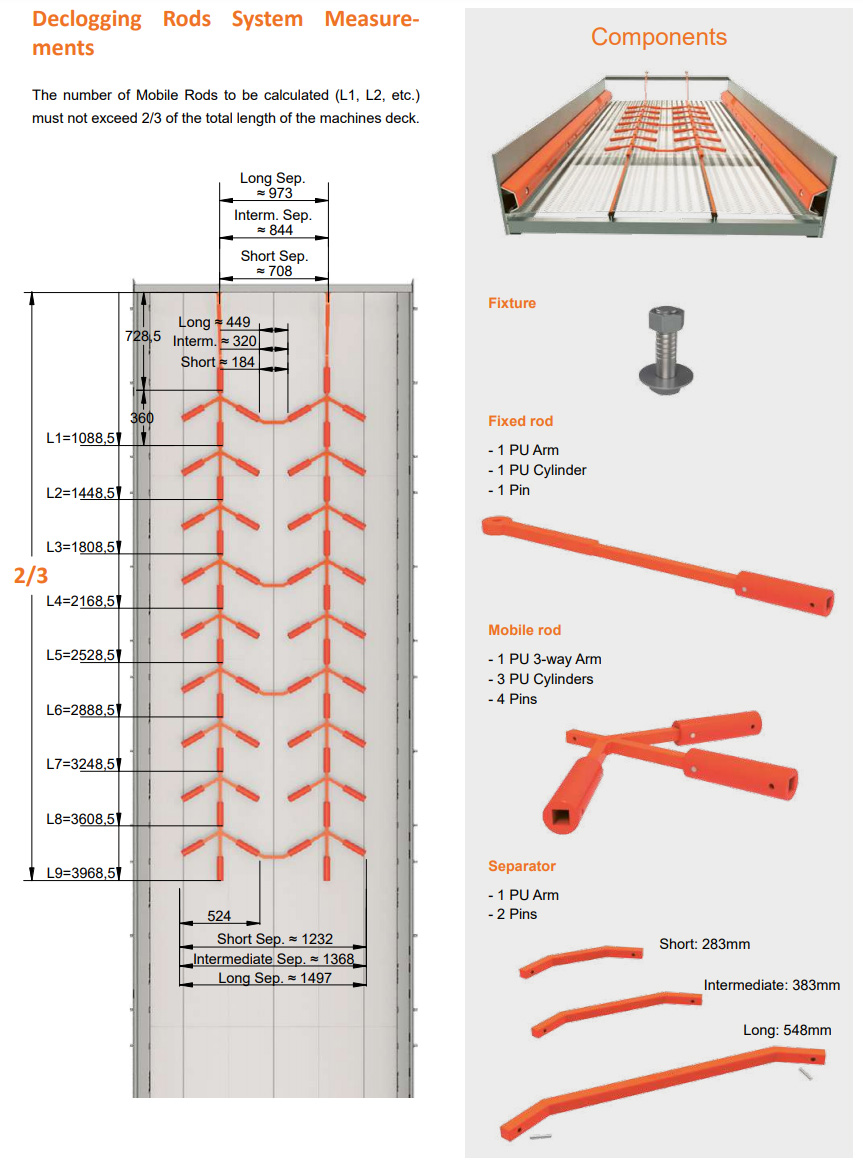

When multiple sets of parallel anti-blocking bars are installed on a screen, depending on the number of movable bars, separation bars are sometimes required to prevent different sets of movable bars from being mixed together.

To increase the passage of materials through the mesh and prevent them from sticking in the holes, elastic rods made of polyurethane are used, which address these issues by impacting the mesh.

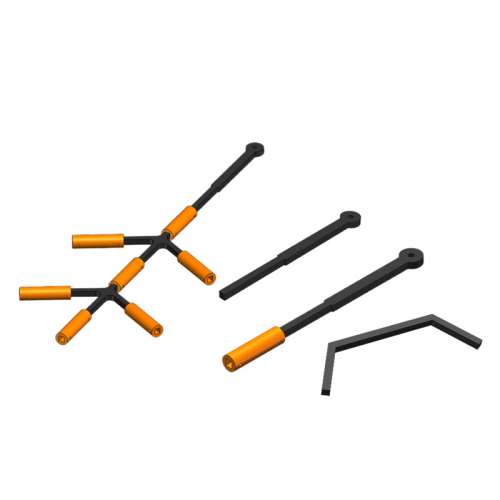

Composition:

• Fastening bolts

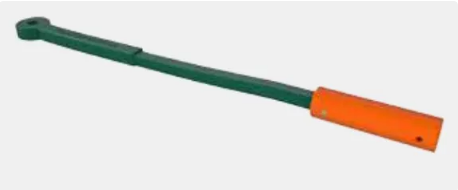

• Fixed rod

• -1 PU connecting rod

• -1 PU rod

• -1 bolt



• Move stick

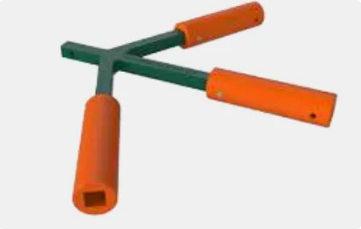

• 3-way PU link rods

• -3 PU rods

• -4 bolts



• Move stick

• -1 PU connecting rod

• -2 bolts

Additional information

Polyurethane Tree-Shaped Vibration Rods (also known as Cleaning Vibration Rods) Characteristics:

Softness and Wear Resistance: Made from polyurethane, these rods are soft and wear-resistant, making them ideal for vibrating and cleaning blockages in screen holes or mesh. Their softness helps minimize damage to the screen, while their durability ensures a long service life.

Corrosion Resistance: Polyurethane vibration rods exhibit excellent resistance to water, oil, and various chemicals, allowing them to operate reliably in diverse environments without succumbing to corrosion.

High-Efficiency Cleaning: Utilizing vibrational forces, these rods effectively strike or oscillate blockages in screen holes or on the mesh, dislodging or breaking them apart to achieve cleaning. This high-efficiency cleaning rapidly restores the normal working condition of screening equipment.

Multi-Branch Design: Typically featuring multiple branches, each equipped with vibration balls or devices, these rods can clean a broader area, covering more screen holes or mesh regions.

Strong Adaptability: Suitable for various vibrating screening equipment, vibrating feeders, and vibrating conveyors, polyurethane tree-shaped vibration rods effectively handle sticky, high-humidity, or easily clogged materials, ensuring stable equipment operation.

Easy Installation: These rods are usually mounted on the sides or bottom of screening equipment using simple fastening devices, making them easy to install, maintain, and replace.

Low Energy Consumption: Since the primary force is generated through vibration, these cleaning rods consume relatively low energy, helping reduce the operational energy costs of the screening equipment.

In summary, polyurethane tree-shaped vibration rods possess qualities such as softness, wear resistance, corrosion resistance, high-efficiency cleaning, multi-branch design, strong adaptability, easy installation, and low energy consumption. These attributes make them essential cleaning devices in vibrating screening equipment.
