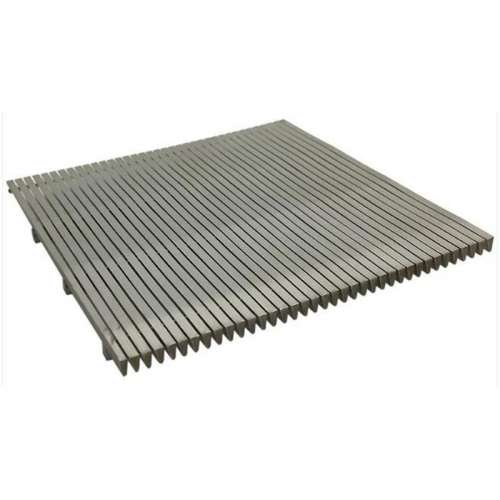

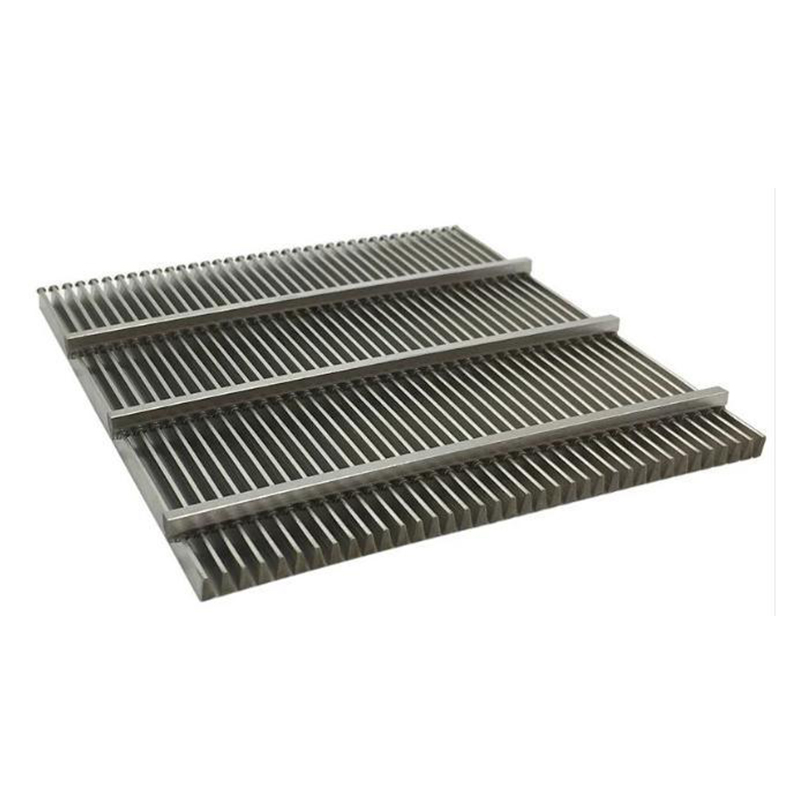

Wedge Wire Slot Filter Panel Mesh Screen

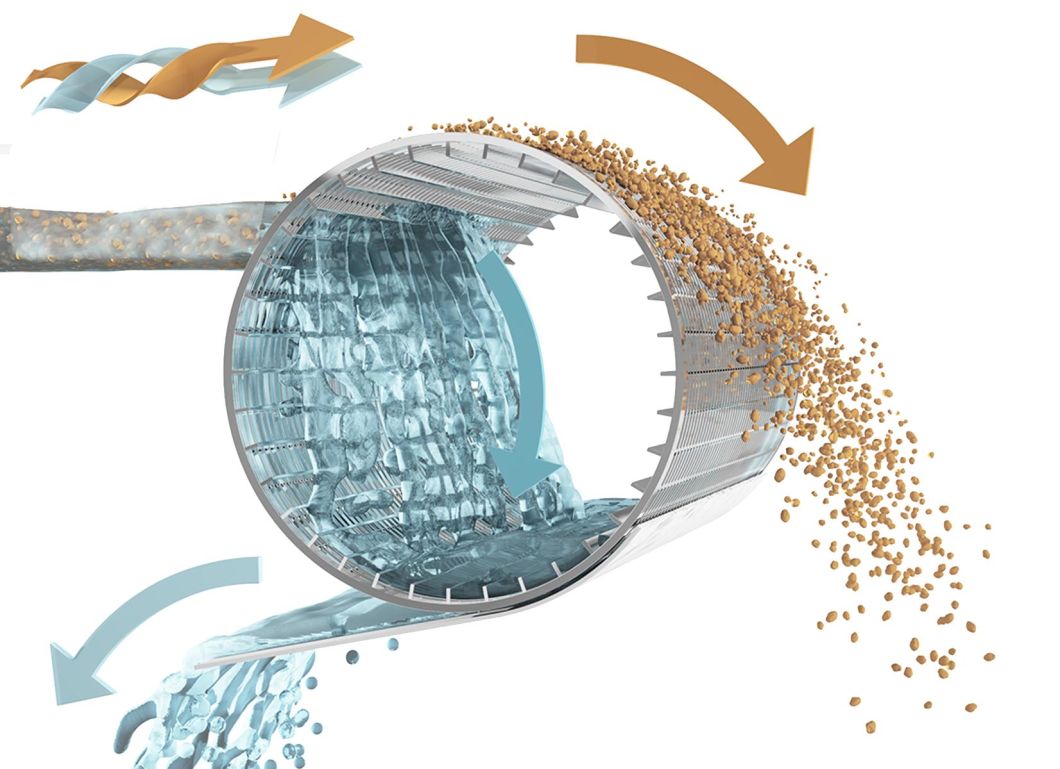

Stainless steel wedge wire filter element is made of V shaped wires and the wedge wire support rods The smooth side is filtering surface lt belongs to coarse filtration The minimum filter accuracy is 20 μm As the filter element in all types of self washing filters (self back flushing filter, scraper type self-cleaning filter, sucking self cleaning filter) it is widely used in various industries of fluid filtration

Description

Stainless steel wedge wire filter element is made of V shaped wires and the wedge wire support rods. The smooth side is filtering surface. lt belongs to coarse filtration. The minimum filter accuracy is 20 μm. As the filter element in all types of self washing filters (self back flushing filter, scraper type self-cleaning filter, sucking self cleaning filter) it is widely used in various industries of fluid filtration.

wedge wire screen

Additional information

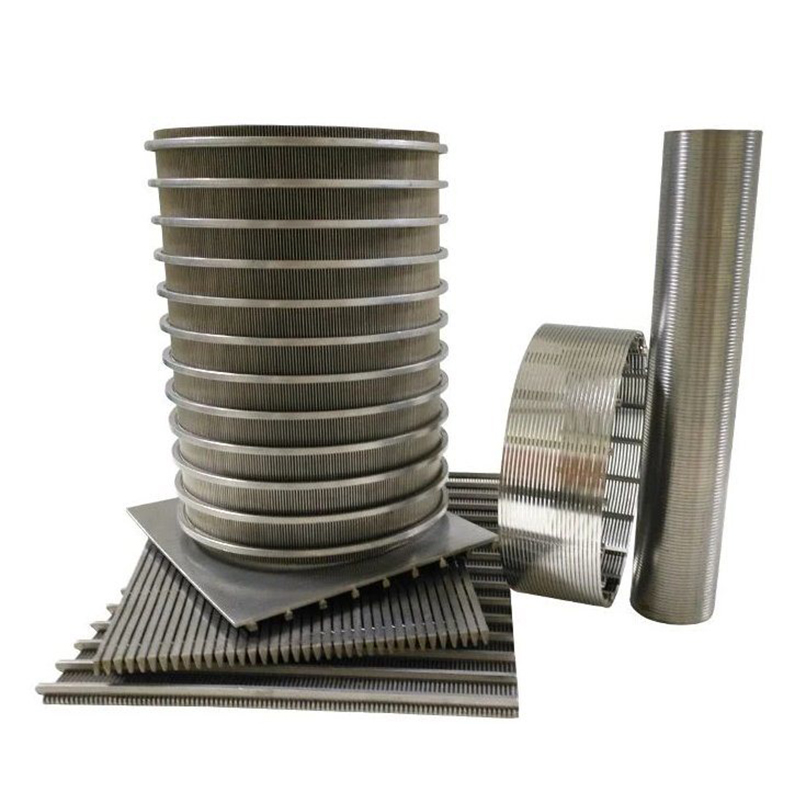

We have a complete range of products, including filter element, screen panels, cylinder, basket, strainer, drum, nozzles, grate, filter equipment and so on. providing customized services for global customers.

Materials: 304, 302, 304L, 316, 316L stainless steel wire, Duplex SS, Supper Duplex SS.

Specification:

-Filtration rate: 15-800μm

-OD: 25.4-1200mm, Length: 6 meter(no splice)

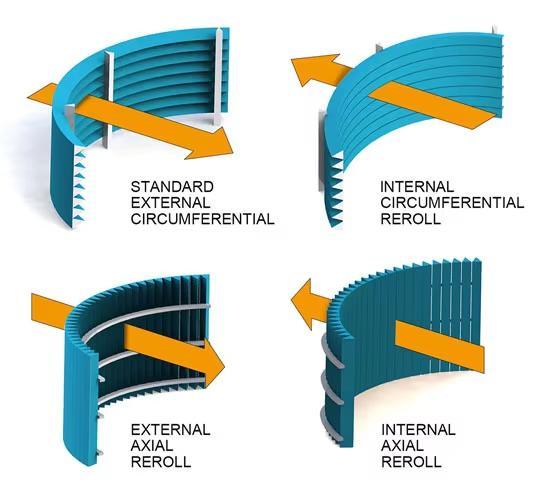

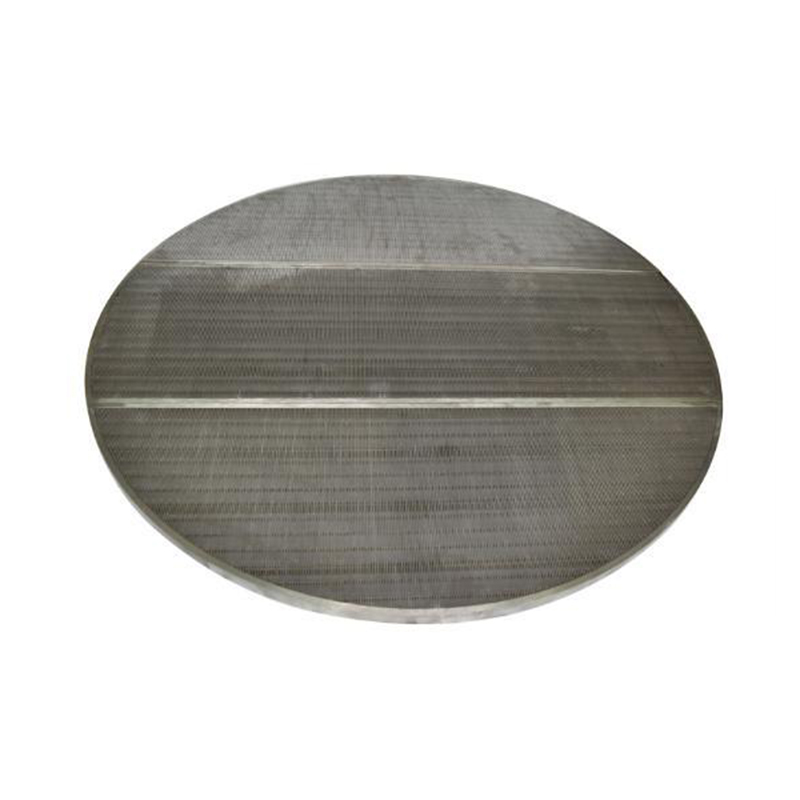

-Wedge filter is valid in kinds of shapes, such as Square, rectangle, disc, basket, tube, cone.

-The slot: 0.1mm-45mm

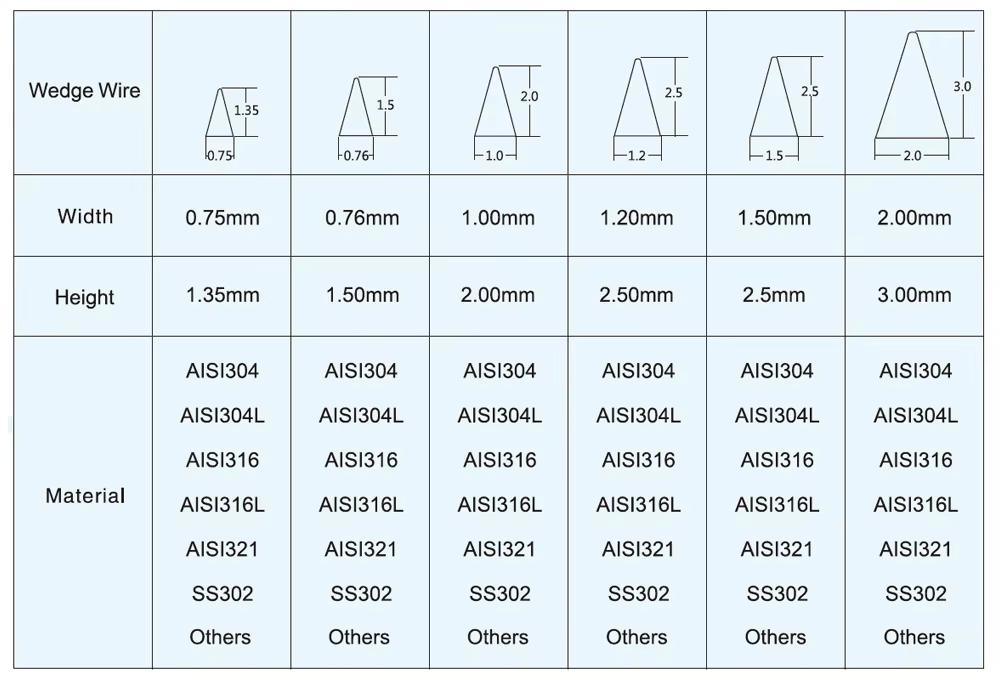

-Wire :2.0mm*30.mm,3.0mm*4.6mm,3.0mm*5.0mm

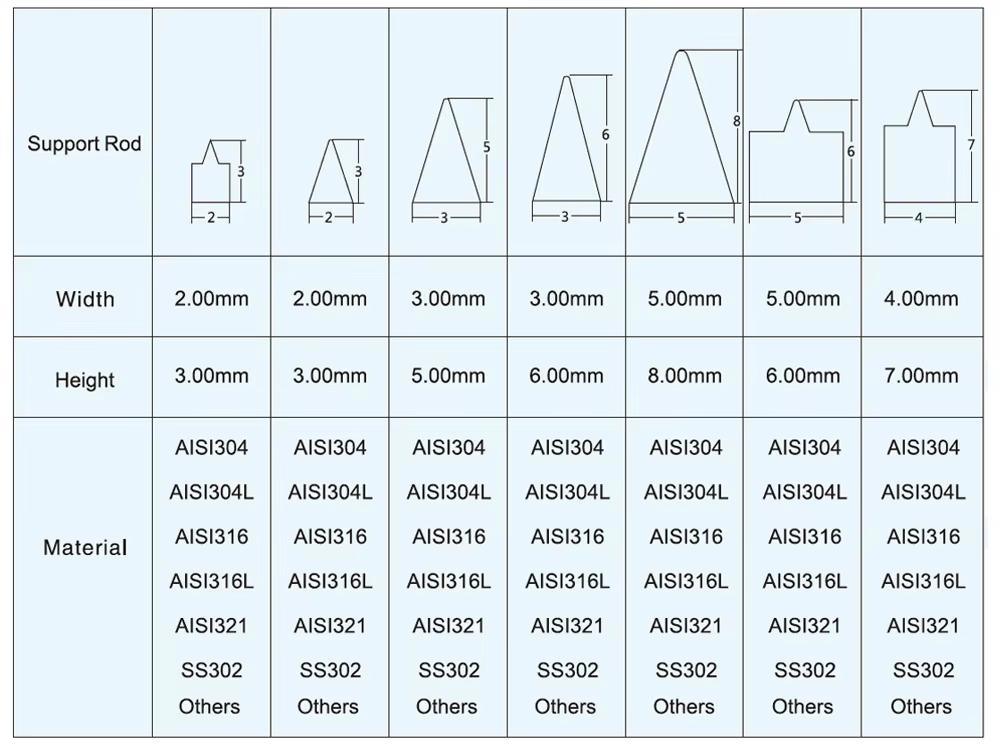

-The rods:3.8mm/22, 3.8mm/32, 3.8mm/48, 3.8mm/50.

-Height 6-40 mm

-The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire).

-Slot filter is valid in kinds of shapes, such as Square, rectangle, disc, basket, tube, cone.

-Styles of connection: by welding or by threaded male/female coupling.
