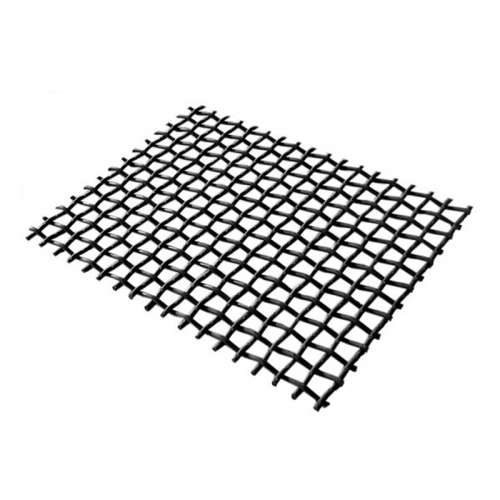

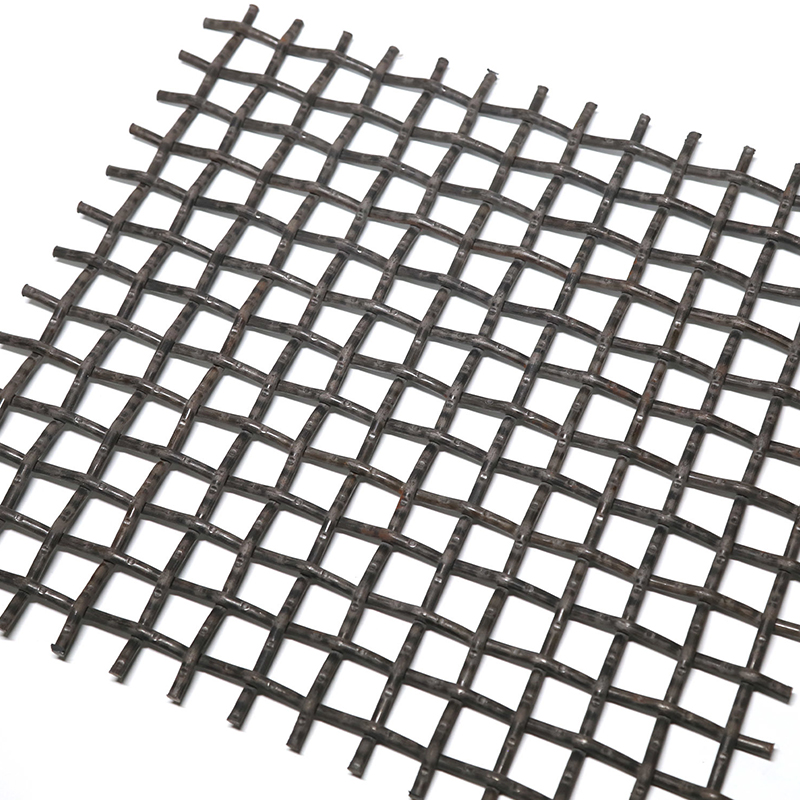

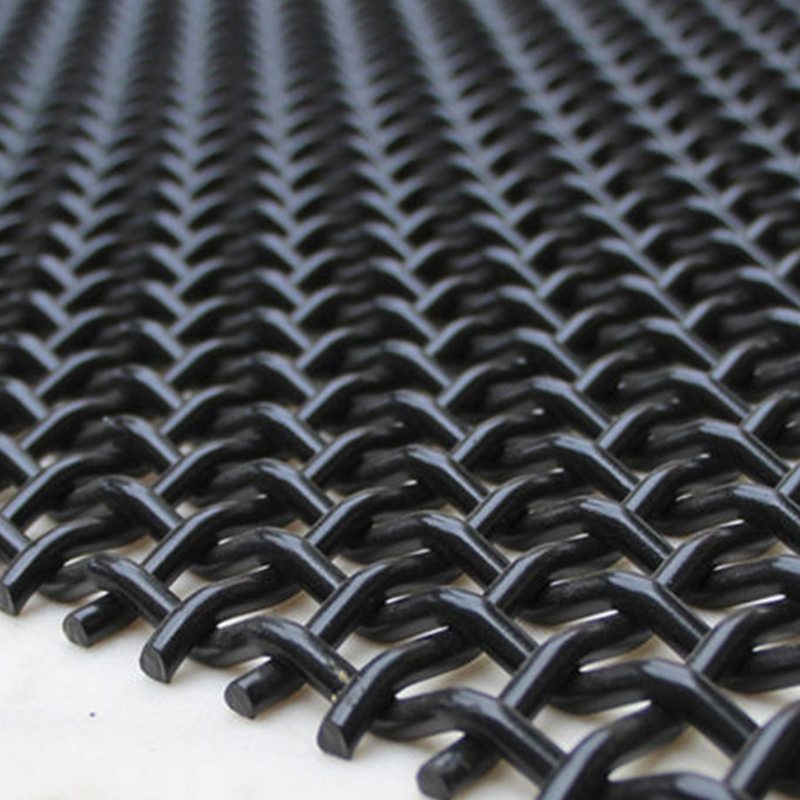

Crimped Woven Screen Mesh
Crimped Woven Screen Mesh
Description
Additional information
Model NO.
Crimped Wire Mesh

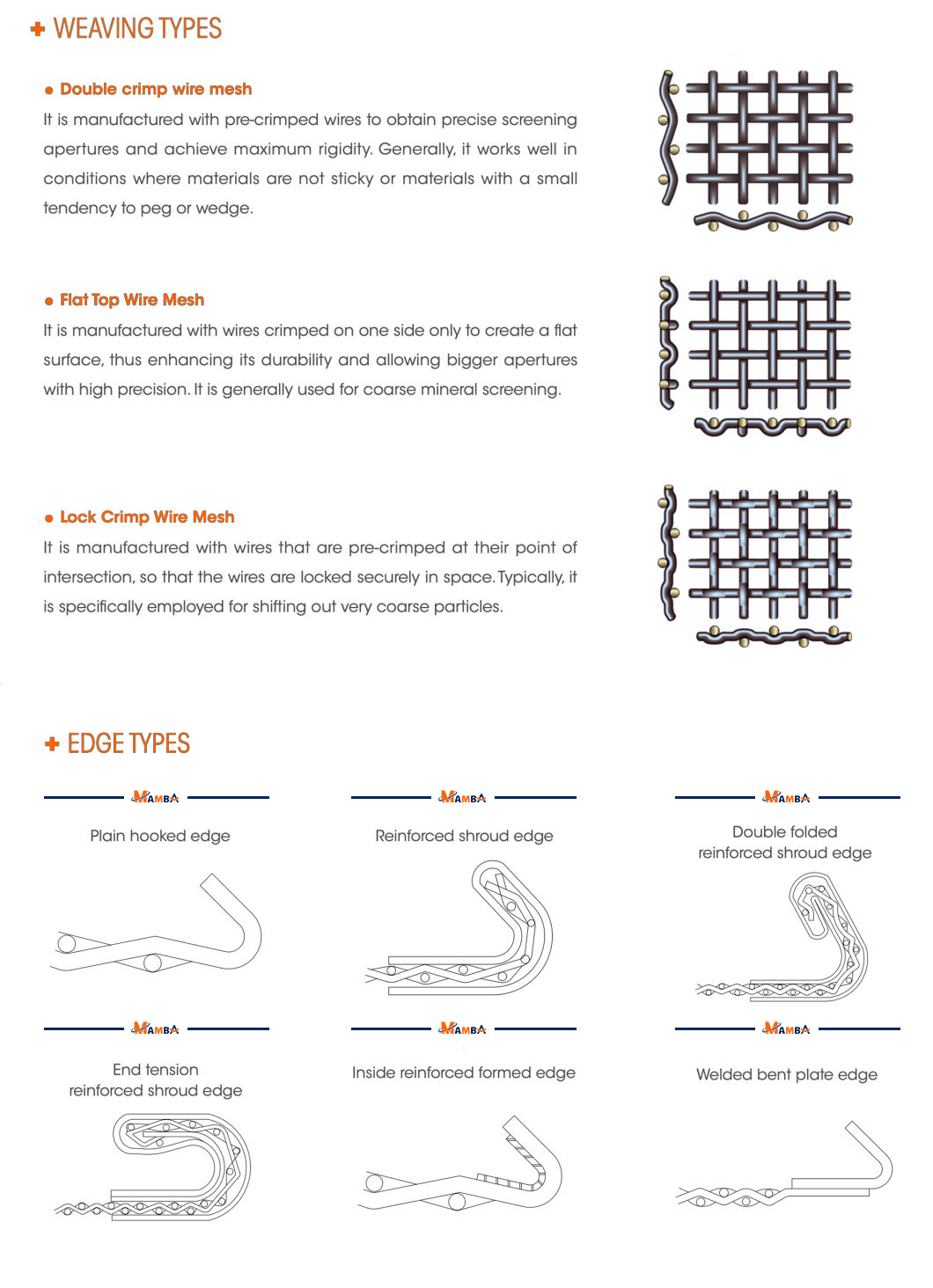

Weave Method
Double Crimped, Flat Top Crimped, Lock Crimped Int
Feature
Screening
Wire Diameter
0.5-12.7mm
Color
Custom
Packaging
Plywood Box, Pallet
Certification
ISO9001
Aperture/Opening
1.0mm-150mm
Size
in Sheet or in Roll, Width up to 6meter, Length up
Surface Finishing
Mill Finish, Anti-Rust Oil Spraying, PVC Coating
Edge Type
Flat Edge or Hooked Edge
Category
Crimped Woven Mesh, Self-Cleaning Screen
Width
up to 2 M or Upon Request
Length
30 M or Upon Request
Hole Size
2mm-100mm
Usage

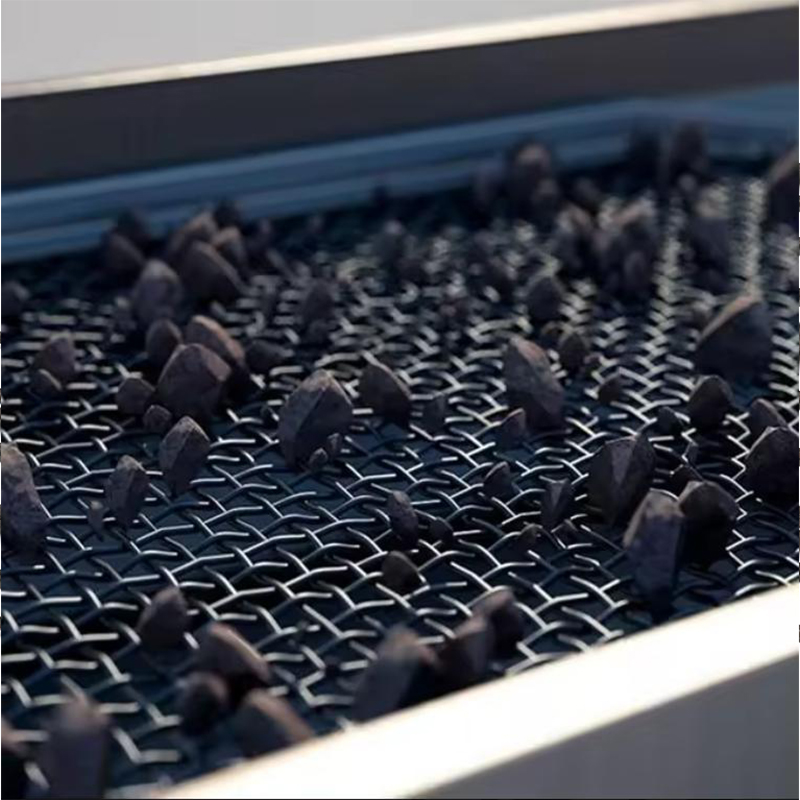

Mine Shaker, Lightweight Fine Shaker
Object
Sand,Mining,Stone
Material Standards
Gbt1222-2016
Quality Standards
Gbt13307, ISO4783
Peculiarity
Durability,Customizable,Cost-Effective
Consider
Mesh Size,Pattern Type,Thickness
Transport Package
Plywood Box
Specification
65Mn
Trademark
QIUSUO
Origin
China
HS Code
73144900
Production Capacity
50000 Meters Per Year
| SQUARE HOLES Crimped Wire Mesh, all available for 65MN | ||||||||
| Item# | Mesh Aperture | Wire Dia. | Item# | Mesh Aperture | Wire Dia. | Item# | Mesh Aperture | Wire Dia. |
| 1 | 1.0mm | 0.6mm 0.7mm 0.8mm | 16 | 12.5mm | 4mm 5mm 6mm | 31 | 28.0mm | 6mm,7mm,8mm |
| 2 | 1.5mm | 0.9mm 0.8mm 1mm | 17 | 13.0mm | 4mm 5mm 6mm | 31 | 30.0mm | 6mm 7mm 8mm |
| 3 | 1.6mm | 1.2mm 1.3mm 1.4mm | 18 | 14.0mm | 4mm 5mm 7mm | 32 | 32.0mm | 6mm 7mm 8mm |
| 4 | 2.0mm | 1.5mm 1.6mm 1.8mm | 19 | 15.0mm | 4mm 5mm 7mm | 33 | 35.0mm | 6mm 7mm 8mm |
| 5 | 3.0mm | 1.8mm 1.9mm 2mm | 20 | 16.0mm | 5mm 6mm 7mm | 34 | 38.0mm | 6mm 7mm 8mm |
| 6 | 4.0mm | 2mm 2.5mm 3mm | 21 | 17.0mm | 5mm 6mm 7mm | 35 | 40.0mm | 6mm 7mm 8mm |
| 7 | 5.0mm | 2mm 2.5mm 3mm | 22 | 18.0mm | 5mm 7mm 8mm | 36 | 45.0mm | 7mm 9mm 10mm |
| 8 | 6.0mm | 2.5mm 3mm 4mm | 23 | 19.0mm | 5mm 7mm 8mm | 37 | 50.0mm | 8mm 9mm 10mm |
| 9 | 7.0mm | 2.5mm 3mm 4mm | 24 | 20.0mm | 5mm 7mm 8mm | 38 | 55.0mm | 8mm 9mm 10mm |
| 10 | 8.0mm | 3mm 4mm 5mm | 25 | 21.0mm | 6mm 7mm 8mm | 39 | 60.0mm | 10mm 11.2mm 12.7mm |
| 11 | 9.0mm | 3mm 4mm 5mm | 26 | 22.0mm | 6mm 7mm 8mm | 40 | 65.0mm | 10mm 11.2mm 12.7mm |
| 12 | 9.5mm | 3mm 4mm 5mm | 27 | 23.0mm | 6mm 7mm 8mm | 41 | 75.0mm | 10mm 11.2mm 12.7mm |
| 13 | 10.0mm | 3mm 4mm 5mm | 28 | 24.0mm | 6mm 7mm 8mm | 42 | 80.0mm | 10mm 11.2mm 12.7mm |
| 14 | 11.0mm | 3mm 4mm 5mm | 29 | 25.0mm | 6mm 7mm 8mm | 43 | 90.0mm | 10mm 11.2mm 12.7mm |
| 15 | 12.0mm | 4mm 5mm 6mm | 30 | 26.0mm | 6mm 7mm 8mm | 44 | 100.0mm | 10mm 11.2mm 12.7mm |
| Special specifications can be customized upon customers' requirements | ||||||||
